Technical Specifications
- Range: Up to 40 miles
- Top Speed: 28 mph (Class 3)
- Weight: 53 lbs
- Frame: Aluminum 6061 Alloy, Step-Through
- Capacity: 300 lbs total
- Rear Rack: Aluminum, 50 lb max
- Fenders: Full coverage
- Safety: SGS Certified to UL 2849
- System: Gates Carbon Belt Drive
- Derailleur: Single Speed
- Freewheel: Gates Flywheel, 20T
- Chainring: Gates 60T
- Crankset: 170mm Alloy
- Pedals: Polypropylene
- Sensors: Torque & Cadence
- Front Fork: Uni-Fork Suspension, 30mm Travel
- Seatpost: SR Suntour NCX Suspension
- Saddle: Velo Wide Comfort

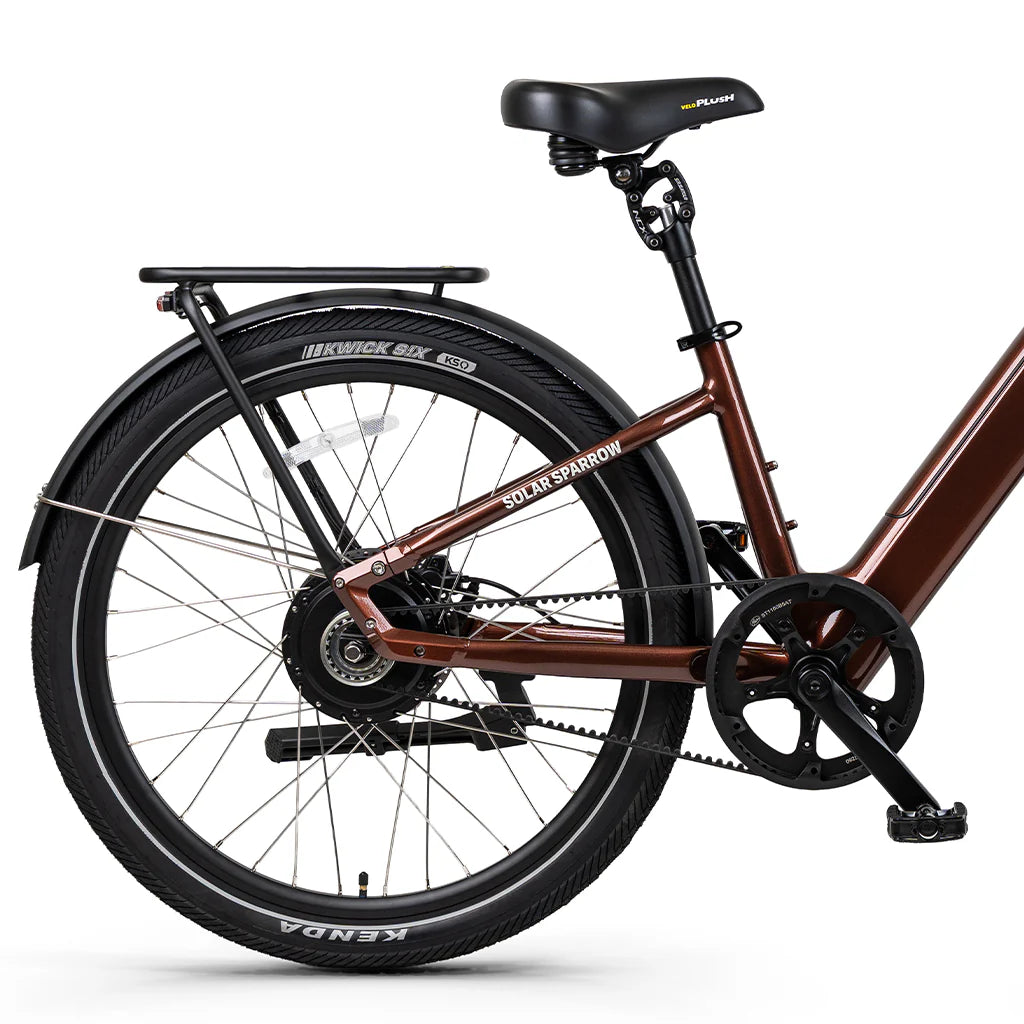

- Tires: Kenda Kwik Six 26” x 2.4”
- Rims: Double-walled Aluminum
- Spokes: 12G Front / 12G Rear
- Front Hub: Thru-Axle
- Motor: 500W Bafang Hub
- Battery: 48V, 10.5Ah (504Wh)
- Controller: Custom 48V / 20A in-frame
- Display: Left-side Color LCD

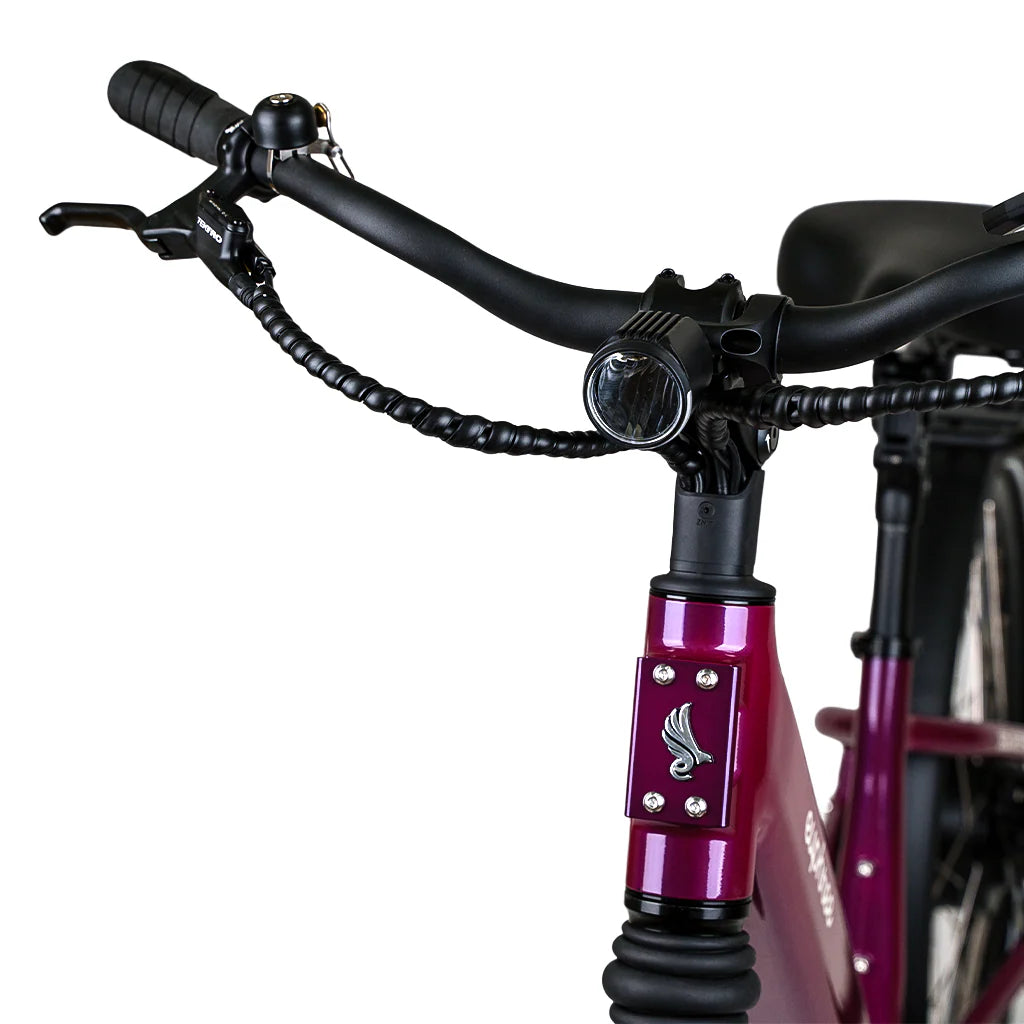

- Stem: 90mm Adjustable
- Headlight: 200 lux Dual Beam LED
- Rear Light: Integrated (steady & flash modes)
- Throttle: Left Thumb Throttle
- USB Port: Type-C Charging
- Charger: 48V, 2 Amp
- System: Tektro E350 Hydraulic
- Levers: Adjustable w/ Motor Cut-Off
- Rotors: 180mm Front & Rear

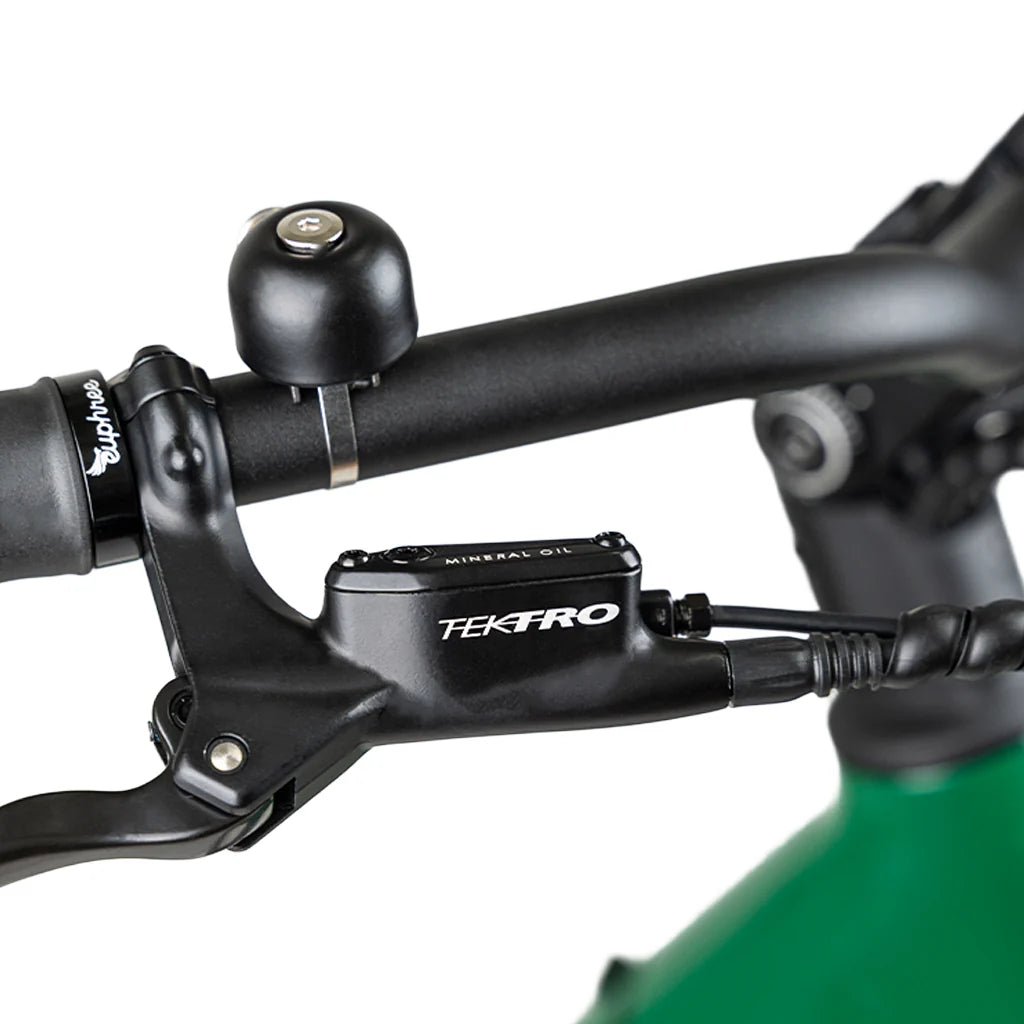

Tektro hydraulic disc brakes with 180mm rotors
For confident stopping power.

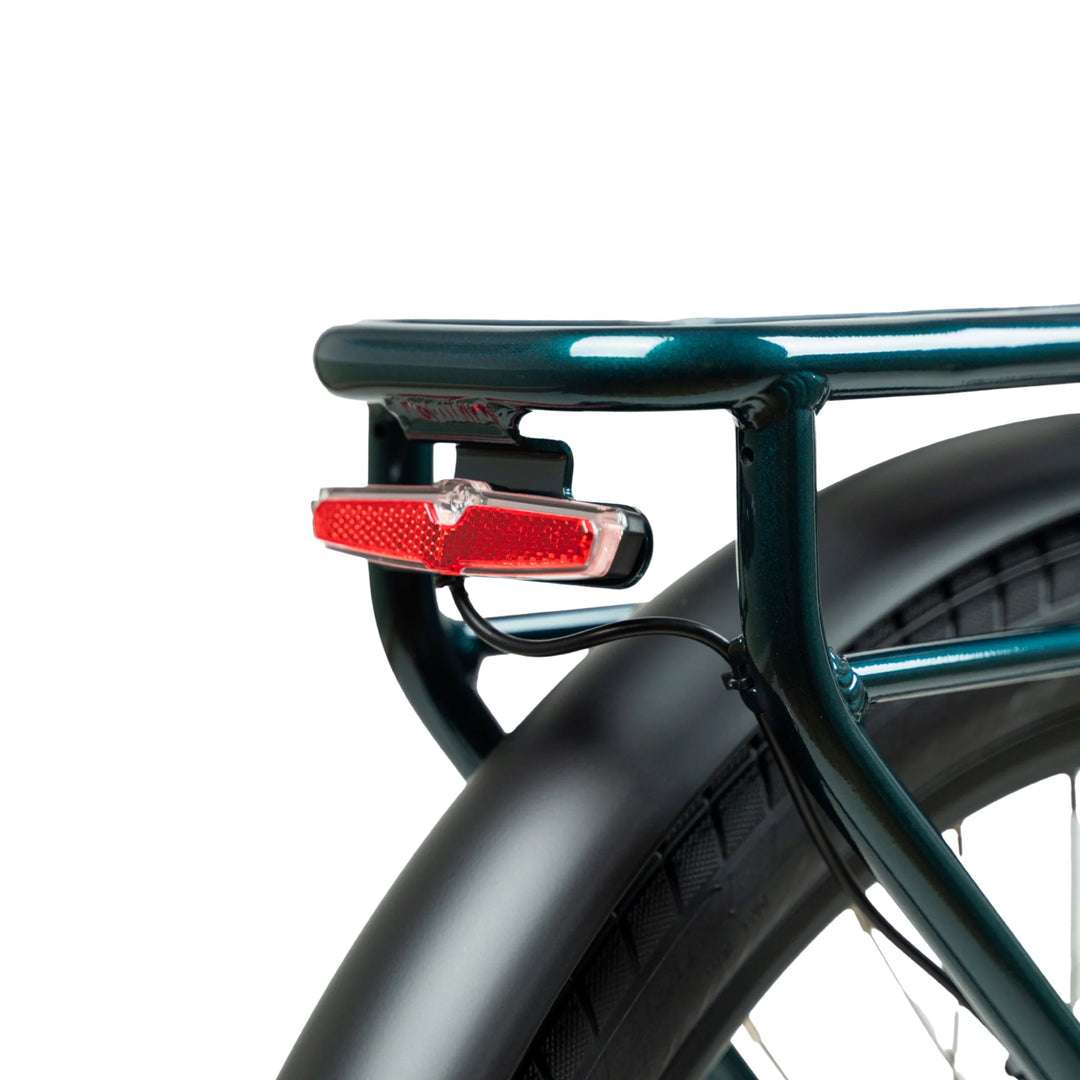

200-lux headlight and brake-activated rear light
For day and night visibility.
Motor cut-off brake levers
That stop power instantly for safer control.
SR Suntour NCX Suspension Seatpost:
Premium comfort that absorbs bumps without extra weight.

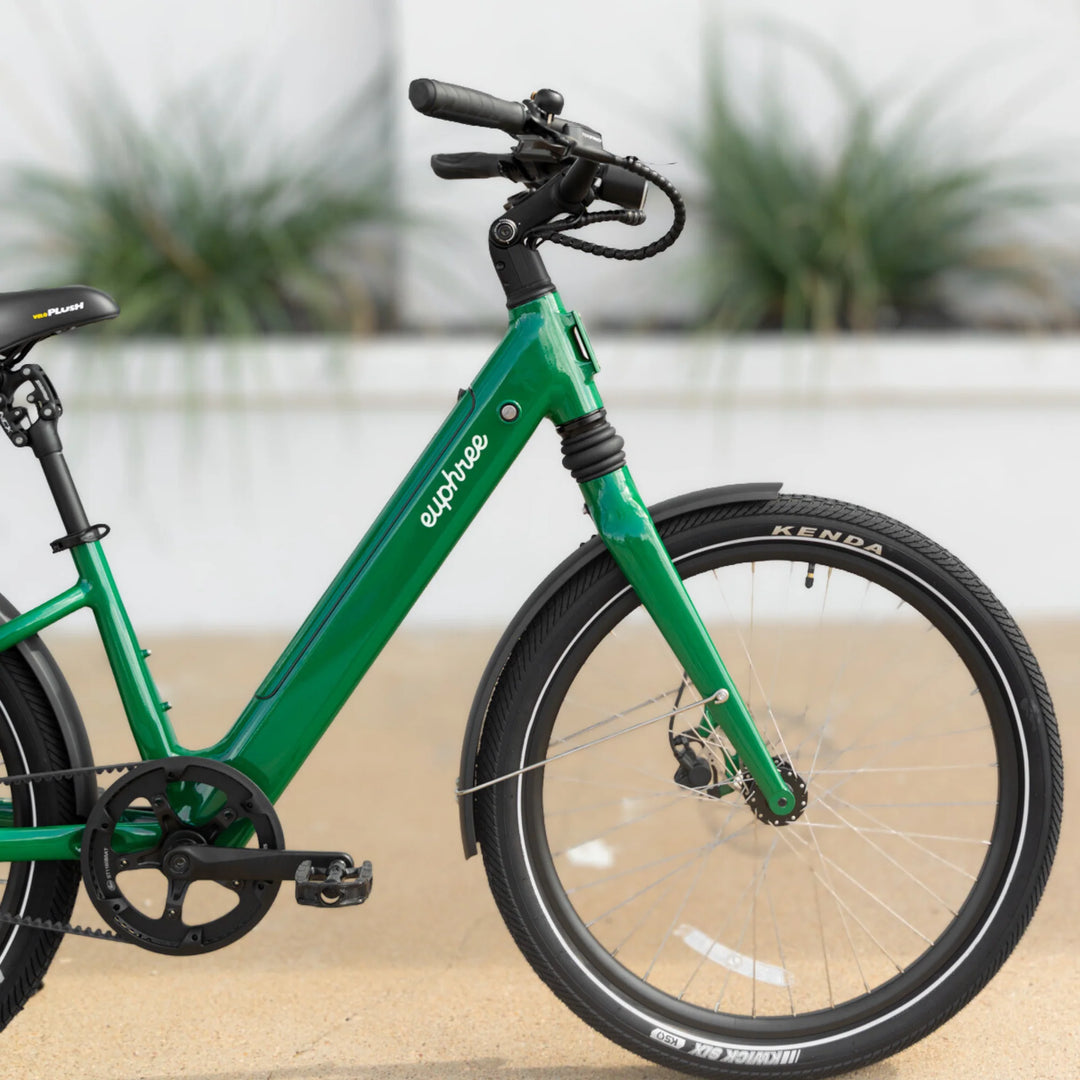

Monoshock Front Suspension (30 mm Travel)
Enough cushion for comfort, without the weight of a full fork.
Smart Pedal Assist
Torque + Cadence Sensors for Effortless Riding
- Torque sensing: Smooth, natural assist that responds to your pedaling.
- Cadence sensing: Relaxed cruising with minimal effort.
- Thumb throttle when you need an extra boost.

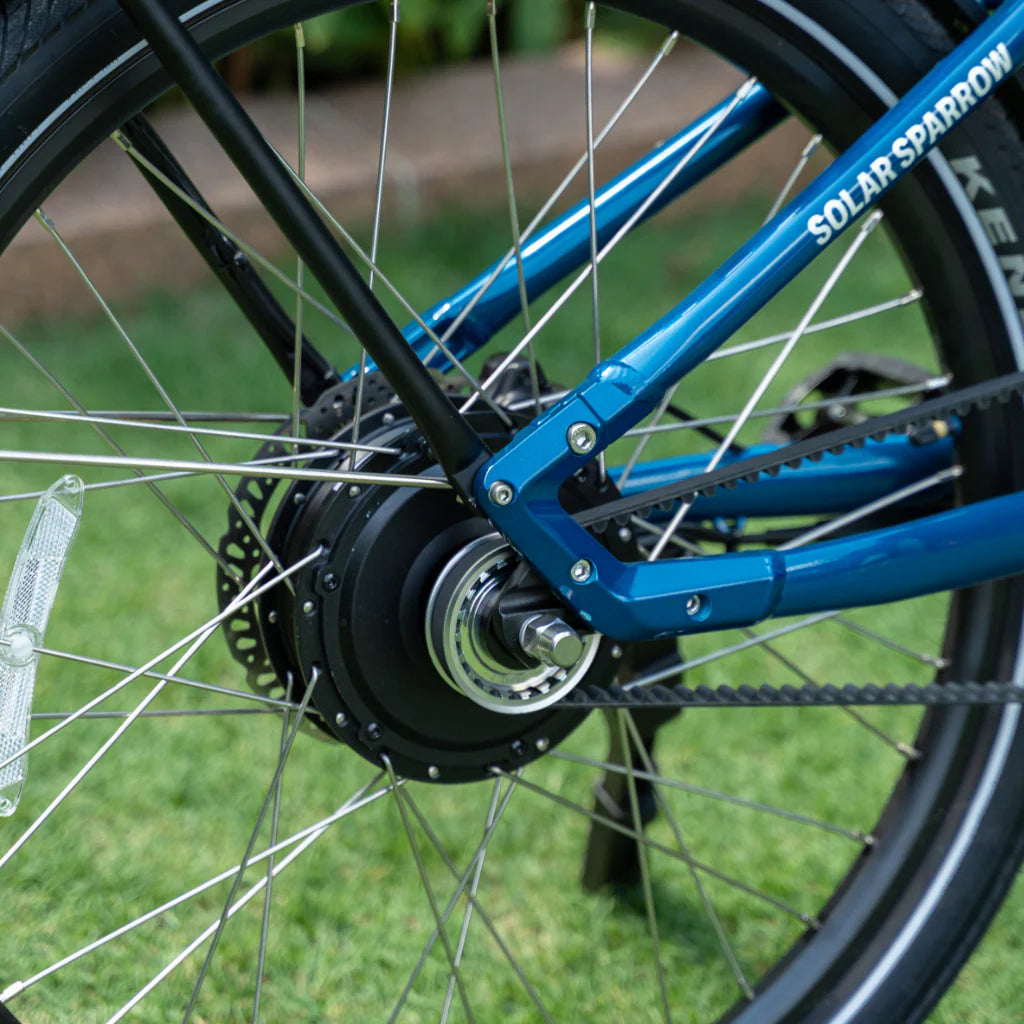

Gates Carbon Belt Drive:
Maintenance-free and ultra-durable, no grease, no chain mess, no tune-ups.
Sizing
For riders 4’11”–5’10”, it blends comfort, simplicity, and everyday practicality with a step-through frame, premium suspension, and a maintenance-free Gates Carbon Belt Drive.
