Technical Specifications
- Model: Stellar Falcon (Step-Thru & Mid-Step)
- Range: Up to 70 miles
- Top Speed: 28 mph (Class 3)
- Weight: Step-Thru 74 lbs | Mid-Step 74 lbs
- Total Capacity: 350 lbs
- Sensors: Torque & Cadence
- Certification: SGS certified (SGSNA/24/CQ/00032) to meet UL 2271 (battery) & UL 2849 (system)
- Material: 6061 Aluminum Alloy
- Frame Style: Step-Thru OR Mid-Step

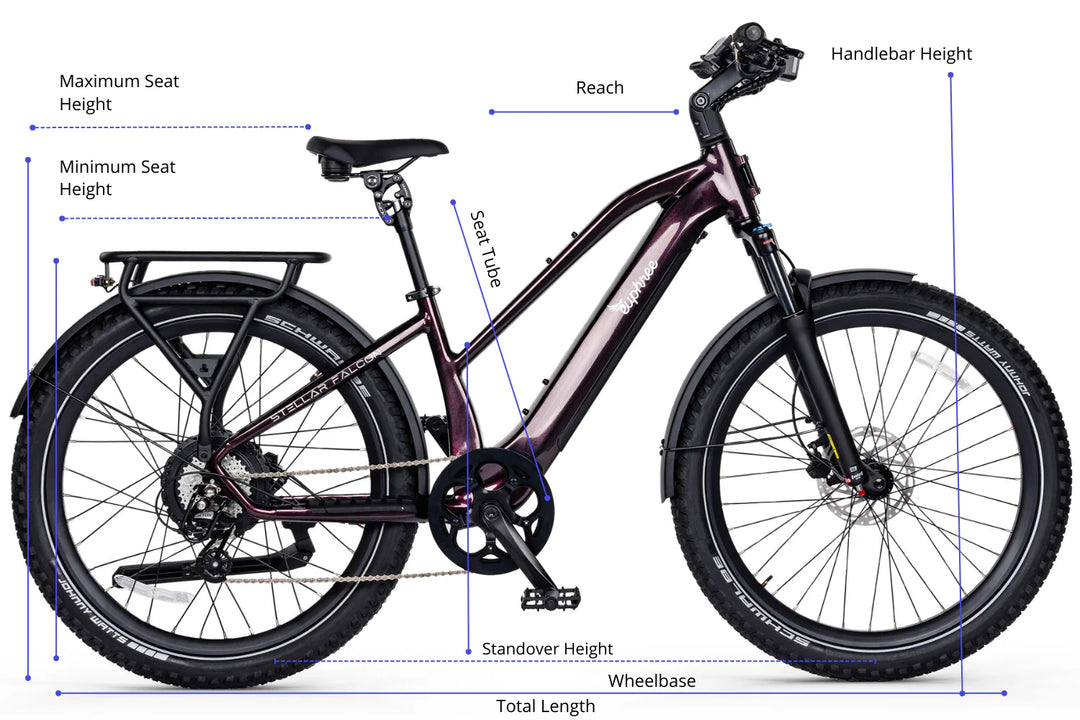

- Rider Heights: Step-Thru 5’2”–6’0” | Mid-Step 5’4”–6’2”
- Standover Height: Step-Thru 16” | Mid-Step 17”
- Seat Tube: Step-Thru 13” | Mid-Step 15”
- Wheelbase: 46”
- Total Length: 72”
- Saddle Height: 33–40” adjustable
- Handlebar Height: 42–45” adjustable
- Rear Rack: Integrated Aluminum, 100 lb capacity
- Fenders: Full Aluminum Coverage
- Front Fork: SR Suntour XCM 32 Air, 110mm travel
- Seatpost: SR Suntour NCX Suspension
- Saddle: Velo Sport Comfort (Mid-Step) | Velo Wide Comfort (Step-Thru)
- Tires: Schwalbe Johnny Watts 27.5 x 2.8”
- Rims: Double-Walled Aluminum
- Spokes: 13G Front / 12G Rear
- Front Hub: Thru-Axle
- Derailleur: Shimano Altus, 8-speed
- Freewheel: 11–34T, 8-speed
- Chain: KMC Z7 Stainless Steel
- Crankset: 170mm Alloy
- Chainring: 50T Double-Sided
- Pedals: Alloy w/ rubber grip
- Brakes: Tektro E350 Hydraulic
- Brake Levers: Adjustable w/ motor cut-off
- Rotors: 180mm front & rear
- Motor: 750W Bafang Geared Hub
- Battery: 48V, 15Ah (720Wh)
- Controller: Custom 48V / 25A In-frame
- Display: Left-Side Color LCD
- Headlight: 200 lumens Dual Beam LED
- Rear Light: Brake Signal, 220° Visibility
- Throttle: Left Thumb Throttle
- USB Port: Type-C Charging
- Charger: 48V, 3 Amp
- Handlebar: 730mm Alloy, Straight w/ Rise
- Grips: Ergonomic Locking Grips
- Stem: Step-Thru 90mm Adjustable | Mid-Step 110mm Adjustable
- Phone Mount: SP Connect Integrated
- Fenders: Full Aluminum Coverage
- Kickstand: Adjustable Alloy
- Rear Rack: Integrated Aluminum, 100 lb capacity
Power That Keeps Up With You.
The 750W Bafang motor delivers strong, quiet power up to 28 mph. With torque and cadence sensors, the Falcon responds naturally to your pedaling, giving you steady acceleration and control.
Sizing
The Mid-Step frame gives you extra stability while still being easier to mount than a traditional step-over. Designed for riders 5’4”–6’2”, it balances comfort with a sportier ride feel.

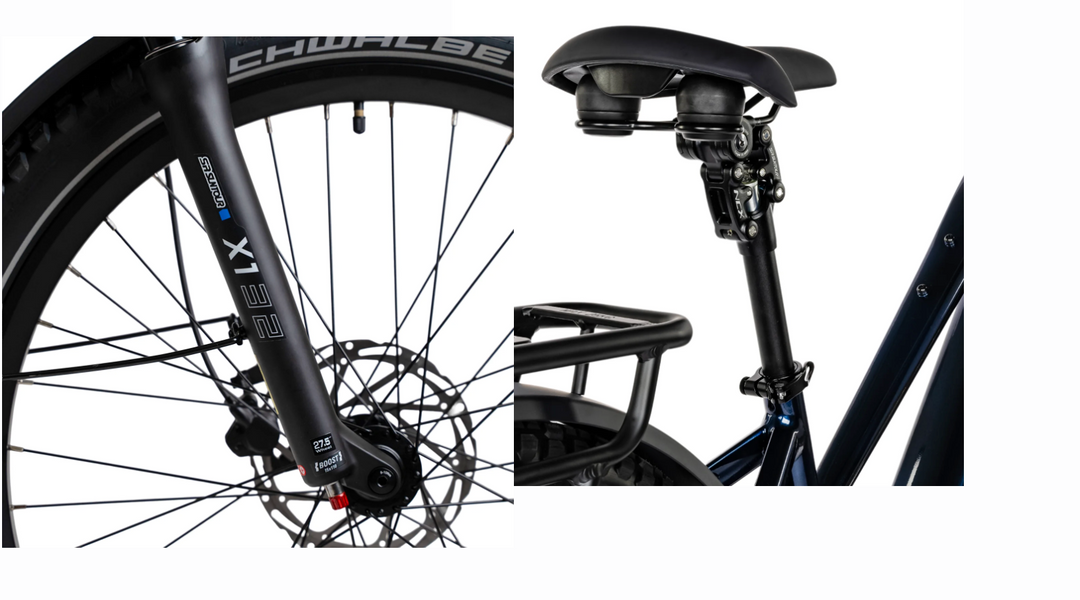

Suspension That Works Both Ways.
The SR Suntour XCM 32 air fork with 110mm travel softens rough paths, while the NCX suspension seatpost reduces impact on your back and hips. City potholes or gravel trails. The Falcon adapts to both.
Safety You Can Trust.
The Stellar Falcon Mid-Step is SGS certified to UL 2271 & UL 2849 (SGSNA/24/CQ/00032). A 200-lumen headlight, rear brake light with 220° visibility, and Tektro hydraulic disc brakes keep you safe and in control day or night.
Wide Tires for Grip and Stability.
Schwalbe Johnny Watts 27.5” × 2.8” tires give you secure traction on pavement and light trails. Double-wall rims and a thru-axle hub add strength for a 350 lb capacity.
