Technical Specifications
- Model: Stellar Falcon (Step-Thru & Mid-Step)
- Range: Up to 70 miles
- Top Speed: 28 mph (Class 3)
- Weight: Step-Thru 74 lbs | Mid-Step 74 lbs
- Total Capacity: 350 lbs
- Sensors: Torque & Cadence
- Certification: SGS certified (SGSNA/24/CQ/00032) to meet UL 2271 (battery) & UL 2849 (system)
- Material: 6061 Aluminum Alloy
- Frame Style: Step-Thru OR Mid-Step
- Rider Heights: Step-Thru 5’2”–6’0” | Mid-Step 5’4”–6’2”
- Standover Height: Step-Thru 16” | Mid-Step 17”
- Seat Tube: Step-Thru 13” | Mid-Step 15”
- Wheelbase: 46”
- Total Length: 72”
- Saddle Height: 33–40” adjustable
- Handlebar Height: 42–45” adjustable
- Rear Rack: Integrated Aluminum, 100 lb capacity
- Fenders: Full Aluminum Coverage
- Material: 6061 Aluminum Alloy
- Frame Style: Step-Thru OR Mid-Step
- Rider Heights: Step-Thru 5’2”–6’0” | Mid-Step 5’4”–6’2”
- Standover Height: Step-Thru 16” | Mid-Step 17”
- Seat Tube: Step-Thru 13” | Mid-Step 15”
- Wheelbase: 46”
- Total Length: 72”
- Saddle Height: 33–40” adjustable
- Handlebar Height: 42–45” adjustable
- Rear Rack: Integrated Aluminum, 100 lb capacity
- Fenders: Full Aluminum Coverage
- Motor: 750W Bafang Geared Hub
- Battery: 48V, 15Ah (720Wh)
- Controller: Custom 48V / 25A In-frame
- Display: Left-Side Color LCD
- Headlight: 200 lumens Dual Beam LED
- Rear Light: Brake Signal, 220° Visibility
- Throttle: Left Thumb Throttle
- USB Port: Type-C Charging
- Charger: 48V, 3 Amp
- System: Tektro HD-E350 Hydraulic
- Rotors: 180mm Front & Rear
- Levers: Adjustable w/ motor cut-off
- Handlebar: 730mm Alloy, Straight w/ Rise
- Grips: Ergonomic Locking Grips
- Stem: Step-Thru 90mm Adjustable | Mid-Step 110mm Adjustable
- Phone Mount: SP Connect Integrated
- Fenders: Full Aluminum Coverage
- Kickstand: Adjustable Alloy
- Rear Rack: Integrated Aluminum, 100 lb capacity
Tackle hills and city streets with ease.
The 750W Bafang motor delivers smooth, quiet power up to 28 mph. With both torque and cadence sensors, the bike responds to how you pedal — giving you steady help without jerks or lag.

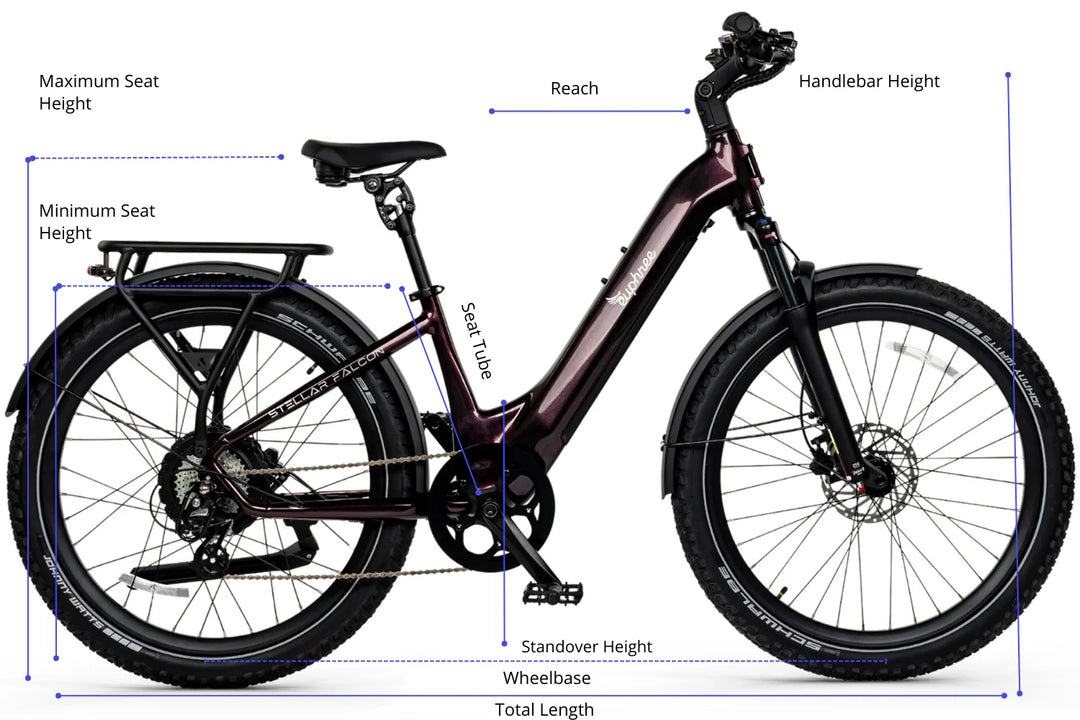

Sizing & Geometry
The low step-thru frame makes getting on and off effortless. Designed for riders 5’2”–6’0” with upright handlebars, dual suspension, and a wide saddle, you’ll stay comfortable mile after mile.
Air Suspension That Adapts to You.

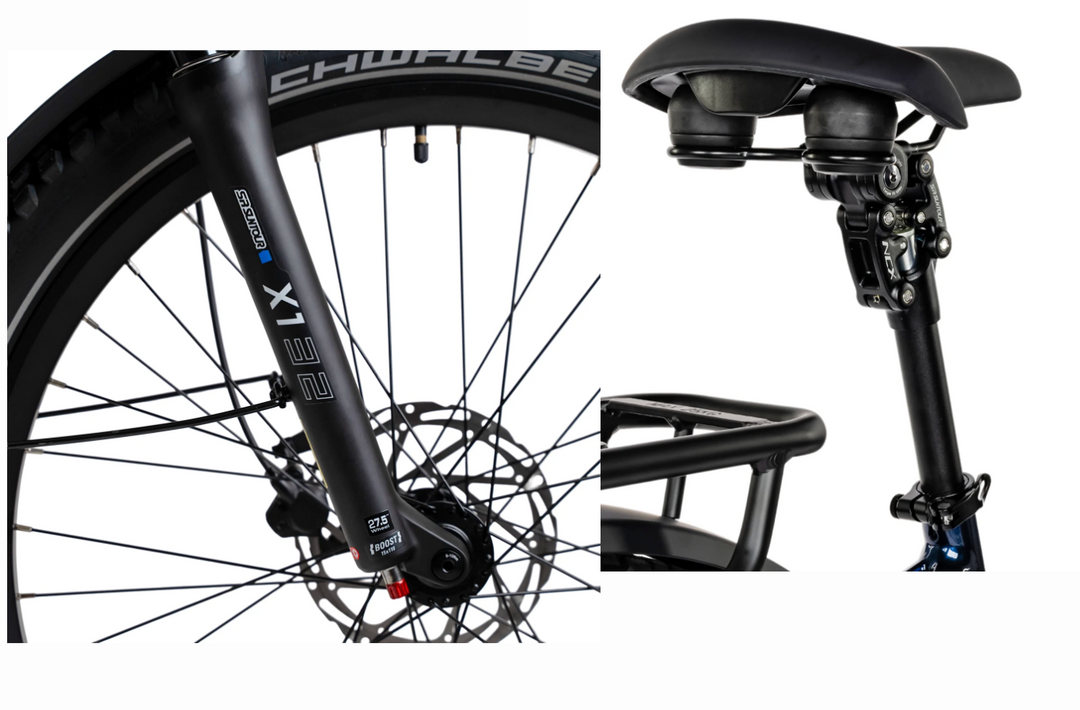

An SR Suntour air fork with 110mm of travel cushions potholes and bumps. Paired with the NCX suspension seatpost, every ride feels stable and easy on your back and joints.
Safety Tested, Houston Trusted.
Every Falcon Step-Thru is SGS certified to UL 2271 & UL 2849 standards (SGSNA/24/CQ/00032). Bright 200-lumen headlight and rear brake light with 220° visibility keep you seen, while Tektro hydraulic disc brakes give strong, reliable stopping power.
Wide Tires for Confidence.

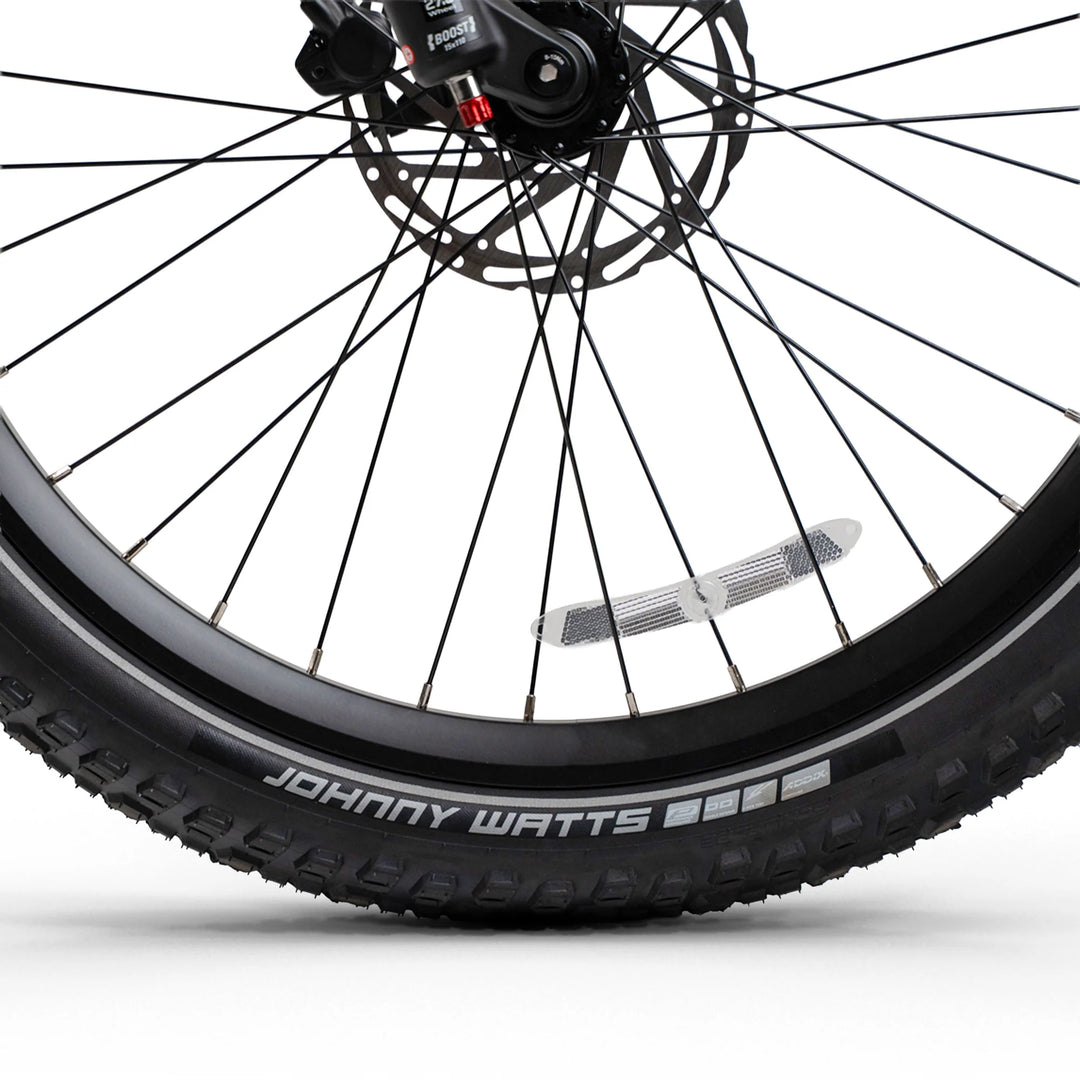

Schwalbe Johnny Watts 27.5” × 2.8” tires grip pavement and handle gravel paths. Double-wall rims and a thru-axle hub add strength for riders up to 350 lbs.
